Shopflo Help · Integrate MoEngage with Shopflo

How to setup the integration?

Enable MoEngage integration on Shopflo Dashboard. Refer below on how to find the correct inputs from MoEngage.

Inputs required

App ID
Data App ID and Key

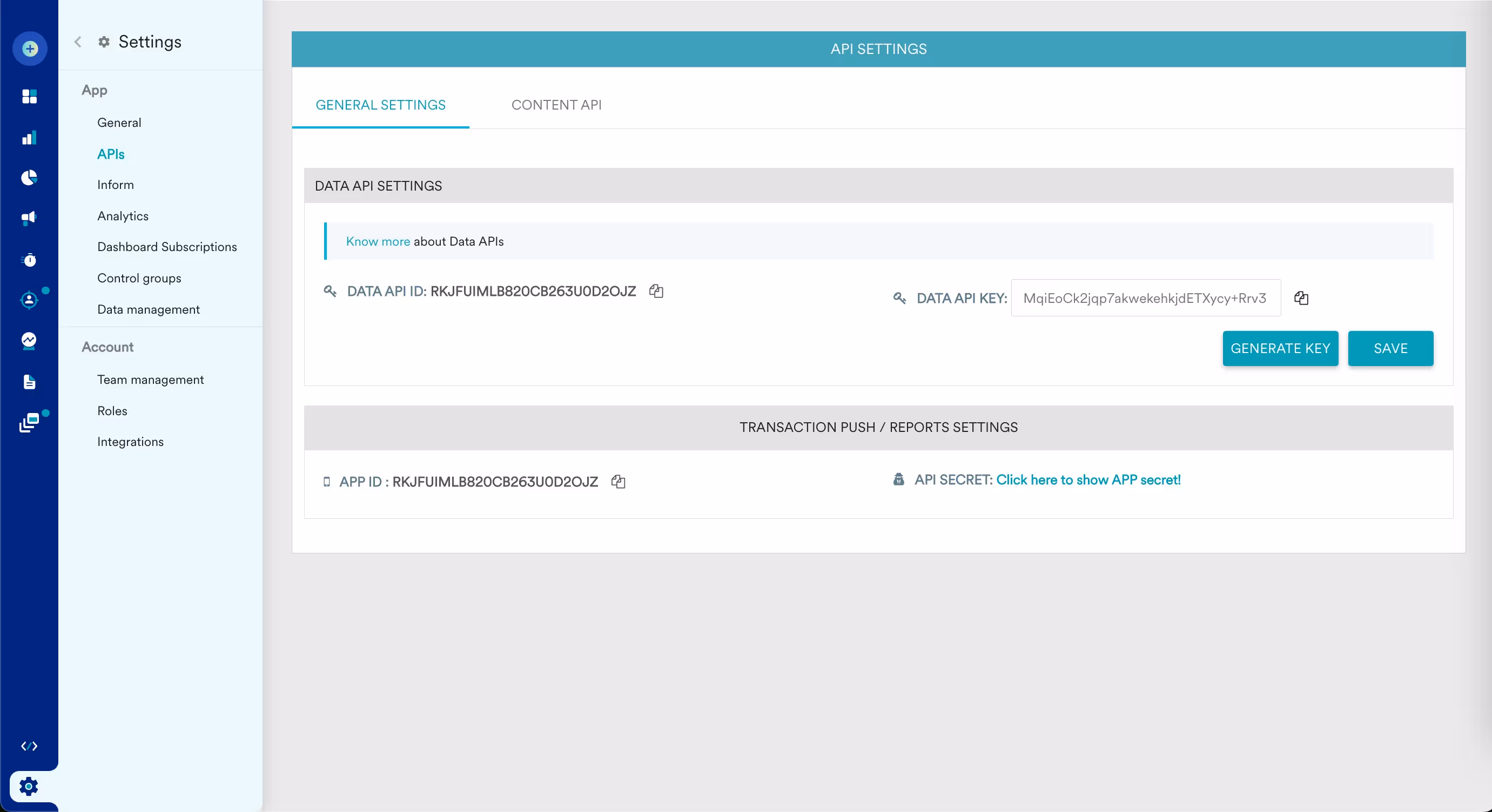

They can be found under Settings > App > APIs in your MoEngage dashboard. Copy the corresponding values from dashboard and paste them in Shopflo Dashboard

Data Center

Check your MoEngage URL https://dashboard-<NUM>.moengage.com

Based on the NUM value {‘01’ | ‘02’ | ‘03’ | ‘04’}, set the correct input in the data center on Shopflo dashboard.

Resource: Data Centers in MoEngage

How to verify the setup?

We have added a verification on the Shopflo dashboard for your credentials when you add the keys. That should take care of any wrong inputs getting saved.
To test the flow,
Go through the order journey
Search for your email ID on the MoEngage dashboard under Segments → Create segment
You will see the user profile created/updated with respective payloads reflecting on the MoEngage dashboard.

What events are being sent?

‍Address submitted

line_items: ["41892488839333"]checkoutURL: <https://checkout.shopflo.co/?tokenId=88b4c6da9f534f38-bee2-8b706be2c0e0>login_type: cookie_login

‍Payment method selected

checkoutURL: <https://checkout.shopflo.co/?tokenId=88b4c6da9f534f38-bee2-8b706be2c0e0>type: cookie_loginmethod: 'upi'

‍Order Completed

discount_value: '323.28'cart_token: 06a7c28f-6d5-4c08-a54-f0728af76shipping_address_province: Uttar pradeshshipping_address_zip: 281121first_name: Johnorder_id: 5190263734503currency: INRtotal_price: 1023.72last_name: doediscount_codes: {0: GUNEET20, 1: PREPAID}line_items: {0: 8056809390311, 1: 8084034322663}shipping_address_country: IndiatyPageURL: "brand.myshopify.com/orders/45676542/hgfd658798"shippin_address_city: Vrindavanbuyer_accepts_marketing: true

Note: User profile update happens at address submitted event. Parameters updated:

First name
Last name
Phone
Email

Update on user profile is sent instantaneously from our end. It may take a few minutes for it to reflect on the dashboard.

How to enable Shopflo checkout url?

Use Shopflo Address Submitted event in your workflows to send Abandoned Checkout messages to users. The parameter checkoutURL will open the checkout for the user.

‍
